Tutorial
Normals, Visibility, and Shadows
Solutions are also available.
- Suppose that we have a normal which we wish to transform from
object model coordinates to device coordinates. How can this be done?
- Back-face culling can be carried out in either VCS or NDCS.
Explain why the criteria for back-face culling are different
in VCS and NDCS.
- Will a z-buffer algorithm always produce the same image, regardless
of the order in which the primitives are processed? Will the final
values in the z-buffer always be the same?
- Suppose we are rendering a rectangle of dimensions a x b,
where a >> b . If we draw two versions of this rectangle,
one lying on its side, and one standing on its end, will they
take equal amounts of time to scan-convert?
-
Shadows are an important feature in modelling any scene.
-

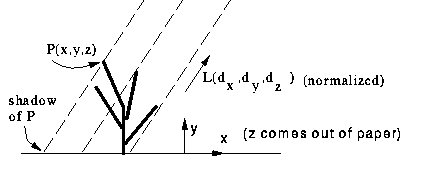

For the following scene, give the projection matrix which produces
the shadow image (on the ground) of points on the tree,
given their world-space coordinates.
-
Determine the projection matrix to determine the shadow image points
cast by a point-light source located at (0,h,0).
- Texture mapping is a process where an image is effectively pasted
onto the surface of a polygon. This is a very commonly used technique
for adding interesting surface detail to an otherwise bland polygon.
The colour of scan-converted pixels
in the polygon are determined by looking up point in the image.

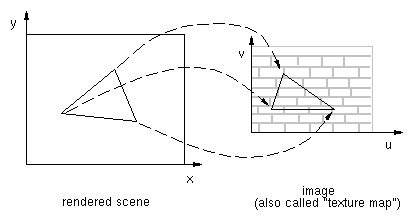

The figure below shows how texture mapping works.
Each vertex is assigned a set of texture coordinates, denoted (u,v),
which serve to define how the image maps onto the polygon. In order
to generate the texture coordinates for other points within the polygon,
binlinear interpolation is commonly used.
- Describe how the texture coordinates can be obtained for points
in the interior of the polygon.
- Suppose that for each polygon pixel we simply use the image pixel
(called a 'texel')
determined by (round(u), round(v)). This is often referred to
as `point sampling' in graphics. Would this work well? What
type of problems might we expect?
