About Ikayaki

About

Ikayaki is a controller / user interface software designed to be used with a SQUID magnetometer (Superconducting QUantum Interference Device) at the Department of Geophysics of the University of Helsinki.

The SQUID magnetometer is used to measure magnetism of rocks and pieces of meteorites collected from various locations.

Ikayaki was designed to be used in all phases when taking measurements with SQUID magnetometer. It provides methods for preprogramming all the wanted measurement sequences and ways for analysing the measured data and saving/printing the data in various formats.

Ikayaki controls the following hardware, manufactured by 2G Enterprises (www.2genterprises.com)

- Superconducting Rock Magnetometer, MODEL 755R, MODEL 760R
- Automated Sample Handler System, MODEL 2G800
- Automatic Sample Degaussing System, MODEL 2G600

For license information see License.

Screenshots

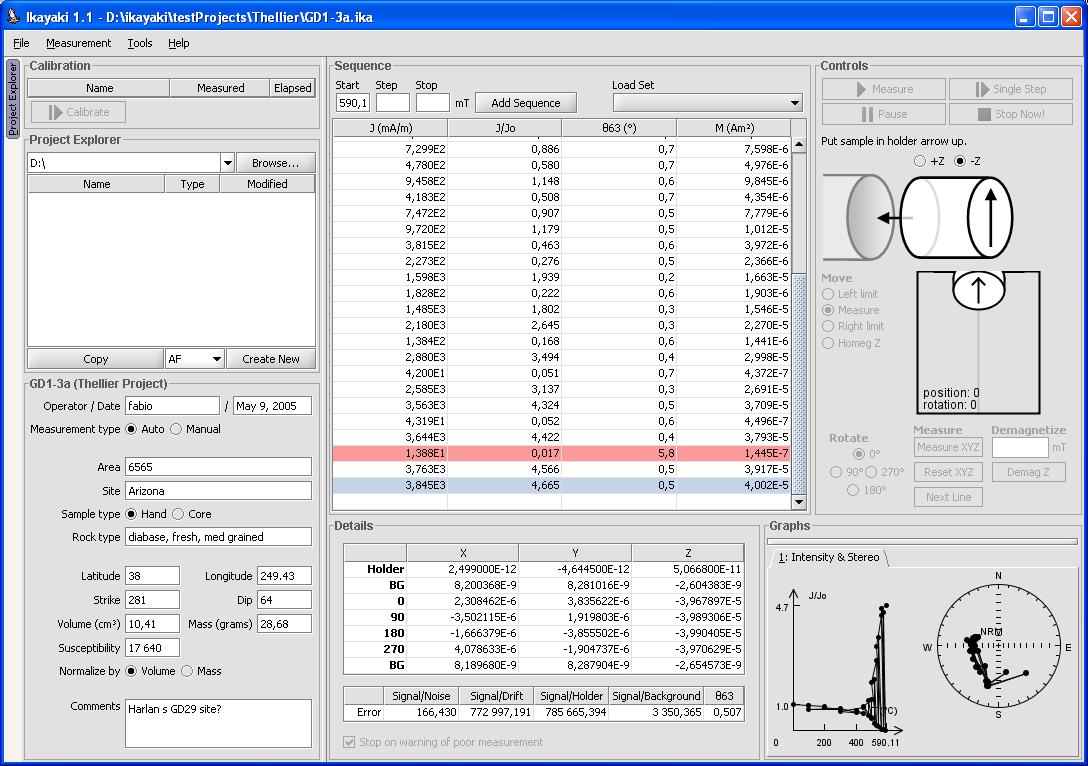

Screenshot from the main view.

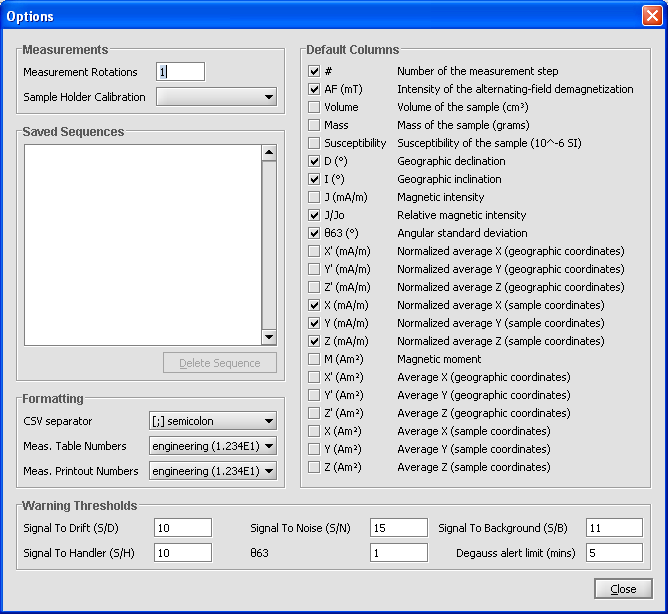

Screenshot from the options panel.

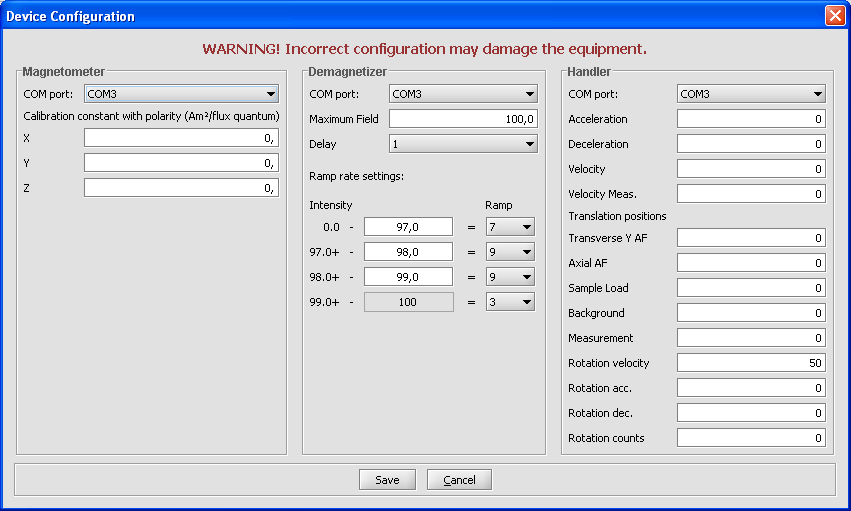

Screenshot from the device configurations panel.

License

Ikayaki is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Ikayaki is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Ikayaki; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
